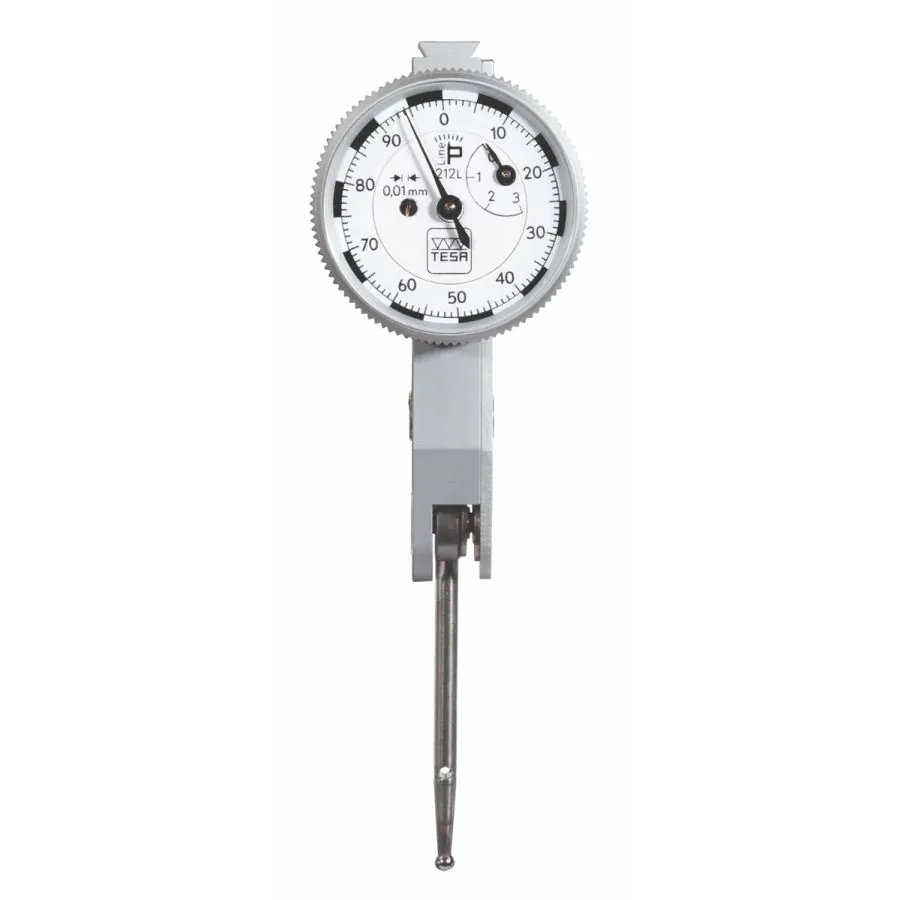

Tesa Lever-type dial test indicator P-Line 212L, 0.01mm graduation, 01810402
TESA TECHNOLOGY 01810402 - P-LINE 212L LEVER INDICATOR
- Circular staircase: 0 ÷ 50 ÷ 100
- Dial, Ø [mm]: 27
- Key length [mm]: 36
- Measuring force [N]: 0,2
- Measuring range [mm]: 3
- Resolution [mm]: 0,01
- Stroke / revolution [mm]: 1
| model type lever indicator | Standard |
|---|---|
| Dial Face Diameter | 27mm |
| Display | Analogue |
| Display Type | Metric |
| Dial Revolution | 1mm |
| Length | 36mm |
| graduation | .01mm |
| Circular Scale dial gauges | 0-50-100 |
| waterproof | No |
| spc output | No |
The new P-LINE range reflects all the quality and high precision of the well-known COMPAC brand. The benchmark in the field of lever-type dial test indicators, the success of these instruments is due to the long measurement range of up to 3 mm. The key lengths and available measurement distances are the longest on the market, while guaranteeing exceptional metrological performance (ISO 9493). The lever-type dial test indicator is invaluable for the recording of errors of form and position. Ideal for measuring axial and radial runout. Combined with decades of metrological expertise, the high-quality materials used make this new range an undisputed reference. The dial has been modernized with better readability thanks to larger numbers, a pure white dial for greater contrast and a new design of the circular segments.
Measuring range up to 3 mm
• Measuring insert stylus up to 36 mm
• Precision movement mounted on rubies
• Secondary pointer with revolution counter
• Movement with a very robust construction
